德国Stego灯管LED 121

更新时间:2022-09-28 00:00:00

访问量:871

厂商性质:生产商

生产地址:德国

简要描述:
灯具配有磁铁固定装置,便于安装在任何钢制机柜或外壳中。经典的LED 121/122采用螺丝固定。总旋转角度为120°,提供完美照明。

品牌简介


STEGO主要产品包括加热器、风扇加热器、温控器、温湿度开关、通风过滤装置、伺服机柜风机盘等。广泛适用风能发电机舱电气柜、变流柜系统、变桨控制系统之主控箱、轴箱、电池箱及各种工业自动化等领域,解决风力发电控制系统的热管理方案。


使用我们的PTC加热器、对流加热器、面板加热器/外壳加热器,避免设备温度下降,防止冷凝。风扇加热器、加热元件和风扇的组合,还应确保室内温暖的空气分布均匀。



产品详情


LED 121/122 Varioline是一款功能强大且紧凑的LED灯,带有集成插座,可在外壳中使用。它采用了许多欧洲国家以及美国和澳大利亚的插座标准,允许笔记本电脑和诊断设备的电源连接。它的LED管发射超过1000/1700 Lm的光,从而在整个深度和高度上照亮甚至非常大的外壳。无眩光、120°旋转灯管使用中等功率LED,使用寿命为60000小时。



技术参数



LED 121技术参数.jpg

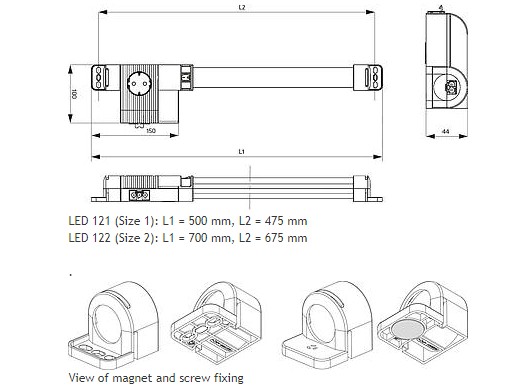

机械参数



LED 121机械参数.jpg




常用型号


VARIOLINE LED 121/122 ON/OFF SWITCH

Size 1:
L1 = 500 mm
Art. No.
Magnet fixing
Size 1:
L1 = 500 mm
Art. No.
Screw fixing
Size 2:
L1 = 700 mm
Art. No.
Magnet fixing
Size 2:
L1 = 700 mm
Art. No.
Screw fixing


Operating voltage


Socket


Nominal current
of socket


Approvals
12100.0-3012100.0-0012200.0-3012200.0-00AC 220 - 240 V, 50/60 HzDE/RU (1)16.0 AVDE -EAC
12101.0-3012101.0-0012201.0-3012201.0-00AC 220 - 240 V, 50/60 HzFR/PL/CZ/SK (2)16.0 AVDE -EAC
12102.0-3012102.0-0012202.0-3012202.0-00AC 220 - 240 V, 50/60 HzCH (3)10.0 A--EAC
12103.0-3012103.0-0012203.0-3012203.0-00AC 220 - 240 V, 50/60 HzUK/IRL (4)13.0 AVDE -EAC
12104.0-3012104.0-0012204.0-3012204.0-00AC 120 V, 50/60 HzUSA/Canada (5)15.0 A-UL File No. E234324EAC
12105.0-3012105.0-0012205.0-3012205.0-00AC 220 - 240 V, 50/60 HzIT (6)16.0 AVDE -EAC
12107.0-3012107.0-0012207.0-3012207.0-00AC 220 - 240 V, 50/60 HzAUS (7)10.0 AVDE -EAC

VARIOLINE LED 121/122 PIR MOVEMENT SENSOR

Size 1:
L1 = 500 mm
Art. No.
Magnet fixing
Size 1:
L1 = 500 mm
Art. No.
Screw fixing
Size 2:
L1 = 700 mm
Art. No.
Magnet fixing
Size 2:
L1 = 700 mm
Art. No.
Screw fixing


Operating voltage


Socket


Nominal current
of socket


Approvals
12110.0-3012110.0-0012210.0-3012210.0-00AC 220 - 240 V, 50/60 HzDE/RU (1)16.0 AVDE -EAC
12111.0-3012111.0-0012211.0-3012211.0-00AC 220 - 240 V, 50/60 HzFR/PL/CZ/SK (2)16.0 AVDE -EAC
12112.0-3012112.0-0012212.0-3012212.0-00AC 220 - 240 V, 50/60 HzCH (3)10.0 A--EAC
12113.0-3012113.0-0012213.0-3012213.0-00AC 220 - 240 V, 50/60 HzUK/IRL (4)13.0 AVDE -EAC
12114.0-3012114.0-0012214.0-3012214.0-00AC 120 V, 50/60 HzUSA/Canada (5)15.0 A-UL File No. E234324EAC
12115.0-3012115.0-0012215.0-3012215.0-00AC 220 - 240 V, 50/60 HzIT (6)16.0 AVDE -EAC
12117.0-3012117.0-0012217.0-3012217.0-00AC 220 - 240 V, 50/60 HzAUS (7)10.0 AVDE -EAC

 PIR movement sensor features approx. 5 min fixed switch-on duration.

VARIOLINE LED 121/122 WITH CONNECTION FOR EXTERNAL DOOR SWITCH

Size 1:
L1 = 500 mm
Art. No.
Magnet fixing
Size 1:
L1 = 500 mm
Art. No.
Screw fixing
Size 2:
L1 = 700 mm
Art. No.
Magnet fixing
Size 2:
L1 = 700 mm
Art. No.
Screw fixing


Operating voltage


Socket


Nominal current
of socket


Approvals
12120.0-3012120.0-0012220.0-3012220.0-00AC 220 - 240 V, 50/60 HzDE/RU (1)16.0 AVDE -EAC
12121.0-3012121.0-0012221.0-3012221.0-00AC 220 - 240 V, 50/60 HzFR/PL/CZ/SK (2)16.0 AVDE -EAC
12122.0-3012122.0-0012222.0-3012222.0-00AC 220 - 240 V, 50/60 HzCH (3)10.0 A--EAC
12123.0-3012123.0-0012223.0-3012223.0-00AC 220 - 240 V, 50/60 HzUK/IRL (4)13.0 AVDE -EAC
12124.0-3012124.0-0012224.0-3012224.0-00AC 120 V, 50/60 HzUSA/Canada (5)15.0 A-UL File No. E234324EAC
12125.0-3012125.0-0012225.0-3012225.0-00AC 220 - 240 V, 50/60 HzIT (6)16.0 AVDE -EAC
12127.0-3012127.0-0012227.0-3012227.0-00AC 220 - 240 V, 50/60 HzAUS (7)10.0 AVDE -EAC

VARIOLINE LED 121/122 WITHOUT SWITCHING OPTION

Size 1:
L1 = 500 mm
Art. No.
Magnet fixing
Size 1:
L1 = 500 mm
Art. No.
Screw fixing
Size 2:
L1 = 700 mm
Art. No.
Magnet fixing
Size 2:
L1 = 700 mm
Art. No.
Screw fixing


Operating voltage


Socket


Nominal current
of socket


Approvals
12130.0-3012130.0-0012230.0-3012230.0-00AC 220 - 240 V, 50/60 HzDE/RU (1)16.0 AVDE -EAC
12131.0-3012131.0-0012231.0-3012231.0-00AC 220 - 240 V, 50/60 HzFR/PL/CZ/SK (2)16.0 AVDE -EAC
12132.0-3012132.0-0012232.0-3012232.0-00AC 220 - 240 V, 50/60 HzCH (3)10.0 A--EAC
12133.0-3012133.0-0012233.0-3012233.0-00AC 220 - 240 V, 50/60 HzUK/IRL (4)13.0 AVDE -EAC
12134.0-3012134.0-0012234.0-3012234.0-00AC 120 V, 50/60 HzUSA/Canada (5)15.0 A-UL File No. E234324EAC
12135.0-3012135.0-0012235.0-3012235.0-00AC 220 - 240 V, 50/60 HzIT (6)16.0 AVDE -EAC
12137.0-3012137.0-0012237.0-3012237.0-00AC 220 - 240 V, 50/60 HzAUS (7)10.0 AVDE -EAC
